European compatibility: Supplied in a version suitable for use in Europe. The transmitter, flight battery and charger are sold separately. Choose a compatible LiPo charger and power supply suitable for your local European mains supply, and follow the product and charger instructions.
In The Box

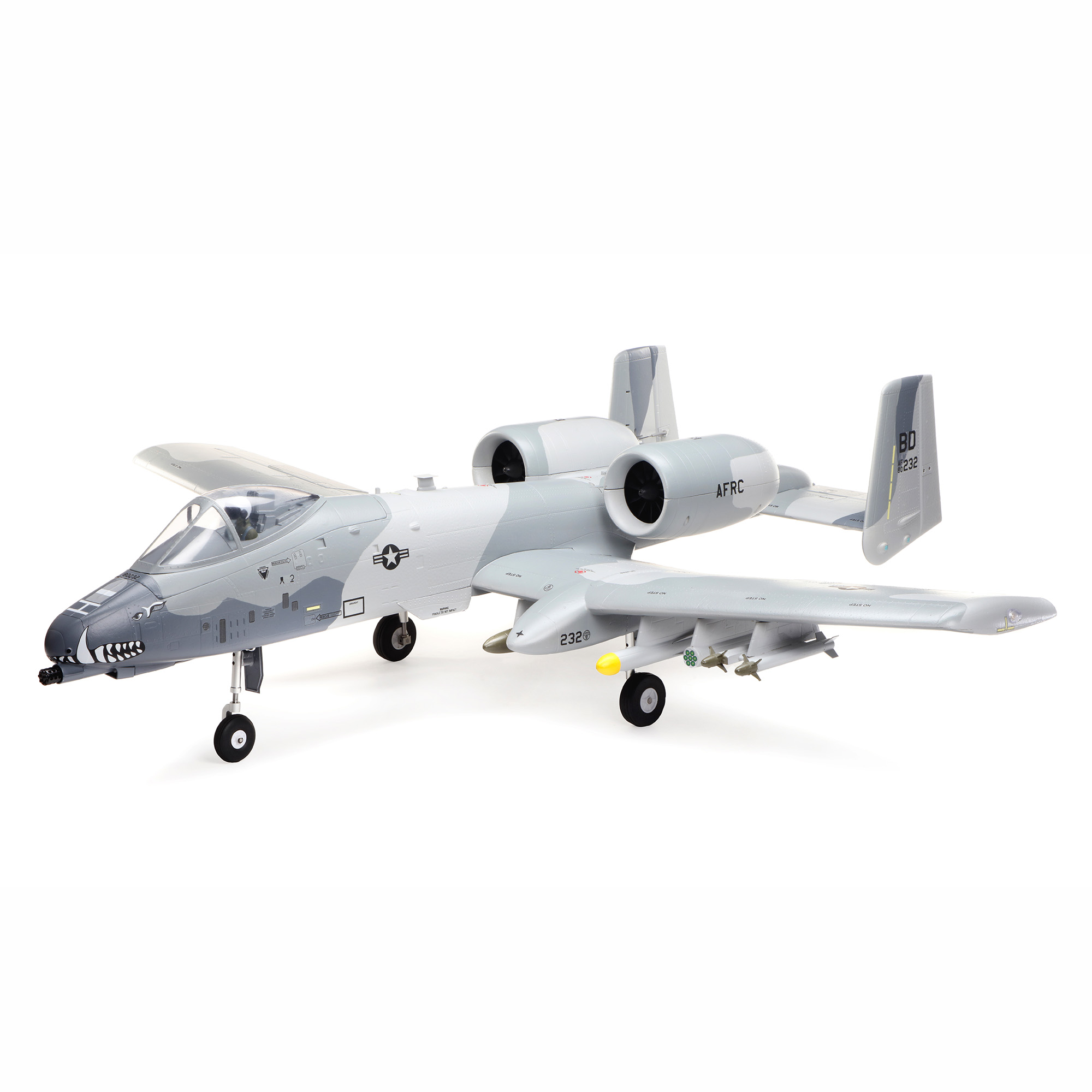

- (1) E-flite A-10 Twin 64mm EDF
- (2) 40A Brushless ESC (installed)
- (2) Brushless Outrunner Motor (installed)
- (9) Digital Servos (installed)
- (1) 5A BEC (installed)
- (1) Spektrum™ AR636 6-Channel Receiver (installed)
- (1) Product Manual
Needed to Complete
- (1) Full-range 6-7+ Channel Spektrum™ DSMX®/DSM2® Compatible Transmitter
- (1) 6S 22.2V 3200–4000mAh 30C+ LiPo with EC5™ or IC5™ Connector
- (1) Compatible LiPo Charger
Specifications
| Airfoil Shape |
Fully symmetrical |
| Approximate Assembly Time |
Less than 1 Hour |
| Approximate Flight Time |
3:30 - 4:00 minutes |
| CG (Center of Gravity) |
2-3/16 - 2-3/4 in (55-70mm) from the leading edge of the wing at the fuselage |
| Charger |
Sold Separately |
| Completion Level |
Bind-N-Fly Basic |
| Fan Size |
64mm EDF |
| Flaps |
Yes |
| Material |
EPO |
| Minimum Required Radio |
6-channel |
| Minimum Speed Control |
(2) included, 40A interconnected with one battery lead, separate BEC |
| Motor Size |
(2) 2840-2200Kv |
| Power Type |
Electric |
| Product Length |
41.77 in (1061mm) |
| Recommended Motor Battery |
6S LiPo 3200 - 4000mAh |
| Skill Level |
Level 3 |
| Speed Control |
Included |
| Transmitter Range |
Full |
| Trim Scheme Colors |
"Flipper" camouflage trim scheme and finish |
| Wing Area |
340 sq in (21.9 sq dm) |
| Wingspan |
45.23 in (1149mm) |
